Understanding Hibernate First Level Cache with Example

Caching is a facility provided by ORM frameworks which help users to get fast running web application, while help framework itself to reduce number of queries made to database in a single transaction. Hibernate achieves the second goal by implementing first level cache.

Fist level cache in hibernate is enabled by default and you do not need to do anything to get this functionality working. In fact, you can not disable it even forcefully.

Its easy to understand the first level cache if we understand the fact that it is associated with Session object. As we know session object is created on demand from session factory and it is lost, once the session is closed. Similarly, first level cache associated with session object is available only till session object is live. It is available to session object only and is not accessible to any other session object in any other part of application.

Hibernate first level cache

Important facts

  1. First level cache is associated with “session” object and other session objects in application can not see it.
  2. The scope of cache objects is of session. Once session is closed, cached objects are gone forever.
  3. First level cache is enabled by default and you can not disable it.

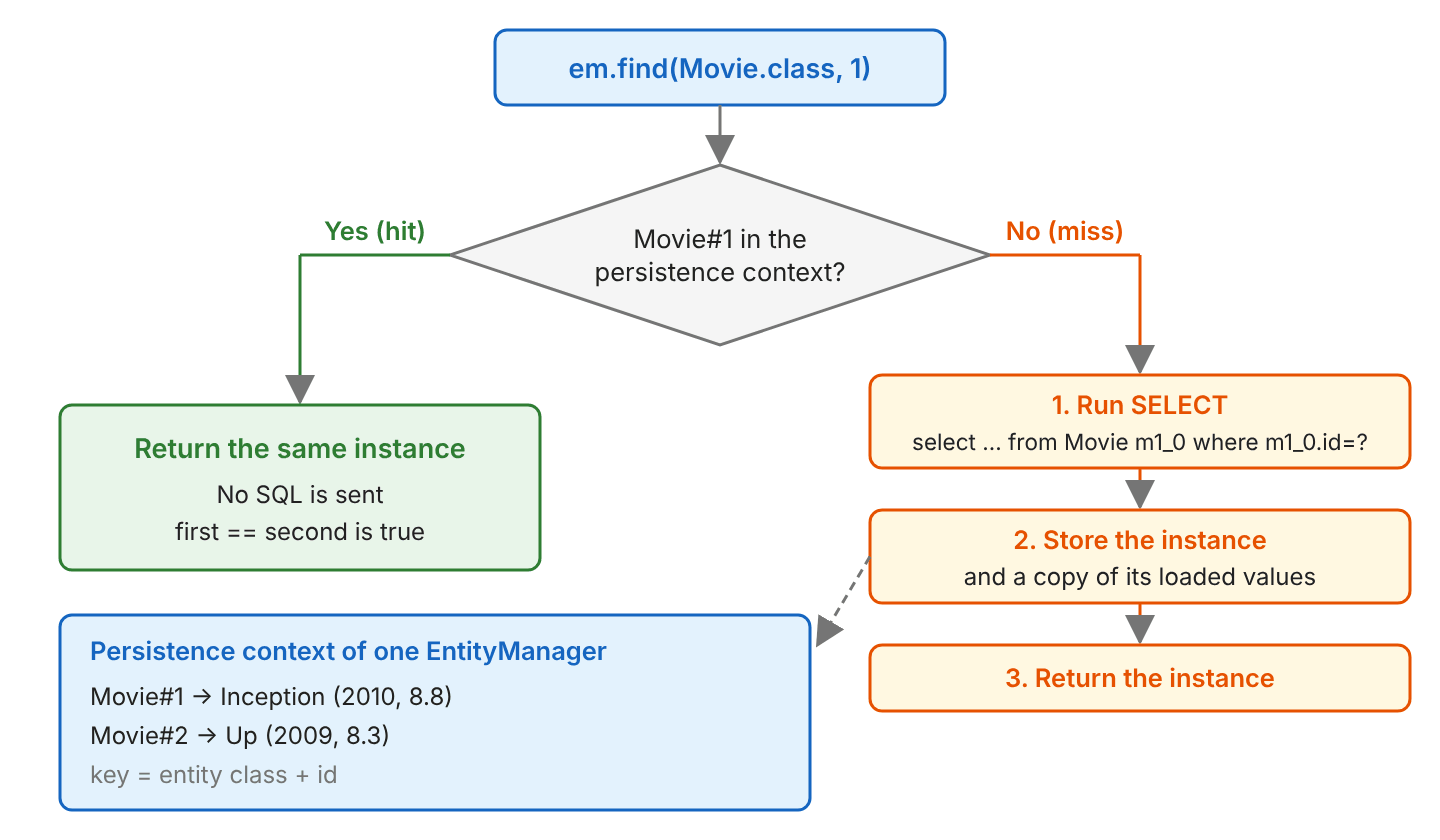

  4. When we query an entity first time, it is retrieved from database and stored in first level cache associated with hibernate session.
  5. If we query same object again with same session object, it will be loaded from cache and no sql query will be executed.
  6. The loaded entity can be removed from session using evict() method. The next loading of this entity will again make a database call if it has been removed using evict() method.
  7. The whole session cache can be removed using clear() method. It will remove all the entities stored in cache.

Lets verify above facts using examples.

First level cache retrieval example

In this example, I am retrieving DepartmentEntity object from database using hibernate session. I will retrieve it multiple times, and will observe the sql logs to see the differences.

//Open the hibernate session
Session session = HibernateUtil.getSessionFactory().openSession();
session.beginTransaction();

//fetch the department entity from database first time
DepartmentEntity department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
System.out.println(department.getName());

//fetch the department entity again
department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
System.out.println(department.getName());

session.getTransaction().commit();
HibernateUtil.shutdown();

Output:

Hibernate: select department0_.ID as ID0_0_, department0_.NAME as NAME0_0_ from DEPARTMENT department0_ where department0_.ID=?
Human Resource
Human Resource

As you can see that second “session.load()” statement does not execute select query again and load the department entity directly.

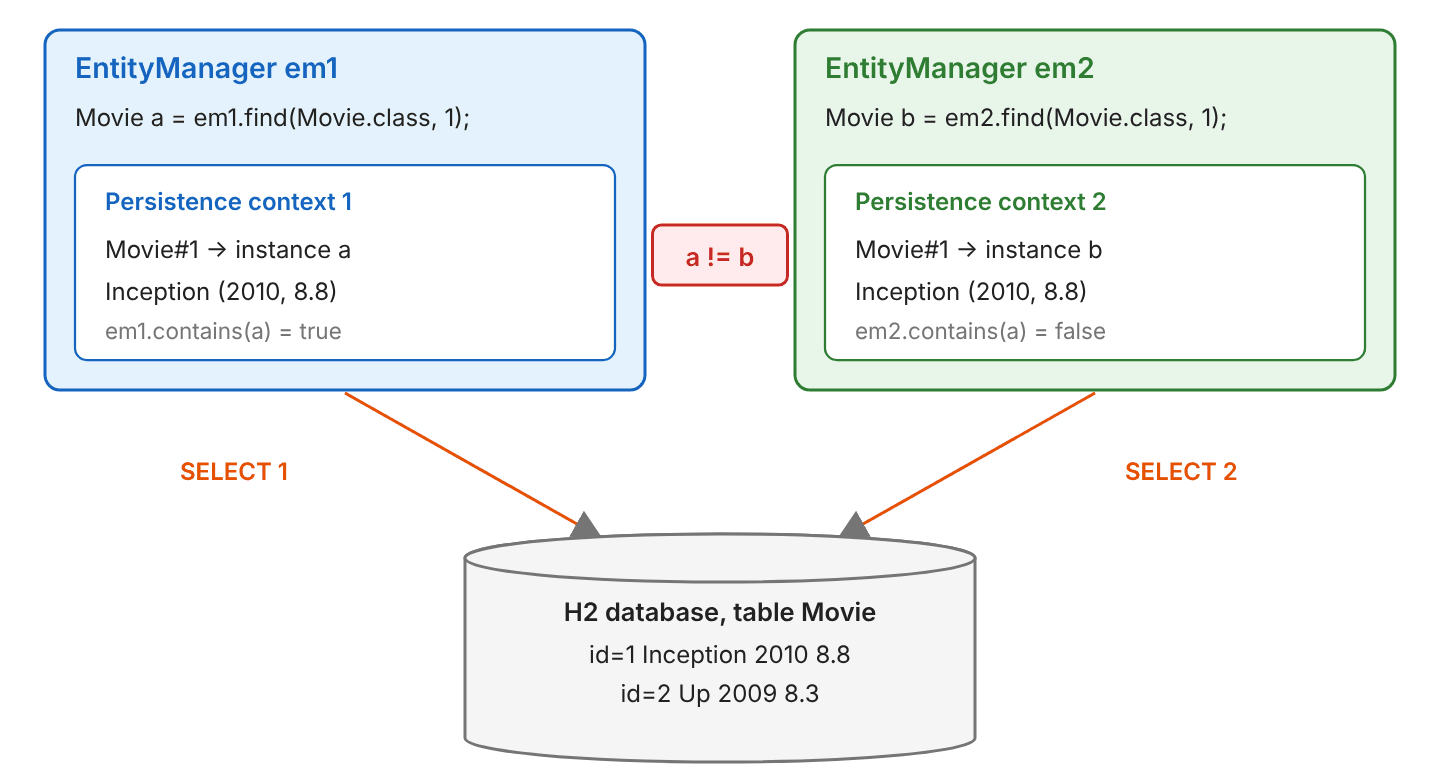

First level cache retrieval example with new session

With new session, entity is fetched from database again irrespective of it is already present in any other session in application.

//Open the hibernate session
Session session = HibernateUtil.getSessionFactory().openSession();
session.beginTransaction();

Session sessionTemp = HibernateUtil.getSessionFactory().openSession();
sessionTemp.beginTransaction();
try
{
	//fetch the department entity from database first time
	DepartmentEntity department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());

	//fetch the department entity again
	department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());

	department = (DepartmentEntity) sessionTemp.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());
}
finally
{
	session.getTransaction().commit();
	HibernateUtil.shutdown();

	sessionTemp.getTransaction().commit();
	HibernateUtil.shutdown();
}

Output:

Hibernate: select department0_.ID as ID0_0_, department0_.NAME as NAME0_0_ from DEPARTMENT department0_ where department0_.ID=?
Human Resource
Human Resource

Hibernate: select department0_.ID as ID0_0_, department0_.NAME as NAME0_0_ from DEPARTMENT department0_ where department0_.ID=?
Human Resource

You can see that even if the department entity was stored in “session” object, still another database query was executed when we use another session object “sessionTemp”.

Removing cache objects from first level cache example

Though we can not disable the first level cache in hibernate, but we can certainly remove some of objects from it when needed. This is done using two methods :

  • evict()
  • clear()

Here evict() is used to remove a particular object from cache associated with session, and clear() method is used to remove all cached objects associated with session. So they are essentially like remove one and remove all.

//Open the hibernate session
Session session = HibernateUtil.getSessionFactory().openSession();
session.beginTransaction();
try
{
	//fetch the department entity from database first time
	DepartmentEntity department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());

	//fetch the department entity again
	department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());

	session.evict(department);
	//session.clear();

	department = (DepartmentEntity) session.load(DepartmentEntity.class, new Integer(1));
	System.out.println(department.getName());
}
finally
{
	session.getTransaction().commit();
	HibernateUtil.shutdown();
}

Output:

Hibernate: select department0_.ID as ID0_0_, department0_.NAME as NAME0_0_ from DEPARTMENT department0_ where department0_.ID=?
Human Resource
Human Resource

Hibernate: select department0_.ID as ID0_0_, department0_.NAME as NAME0_0_ from DEPARTMENT department0_ where department0_.ID=?
Human Resource

Clearly, evict() method removed the department object from cache so that it was fetched again from database.

Hope you likes above article. If you got any question or suggestion, drop a comment.

Happy Learning !!

Was this post helpful?

Join 7000+ Fellow Programmers

Subscribe to get new post notifications, industry updates, best practices, and much more. Directly into your inbox, for free.

92 thoughts on “Understanding Hibernate First Level Cache with Example”

  1. Hi ,
    What happened to the object stored in the first level cache if another session updated it in the Data Base?

    Reply
    • I have the same doubt. Will the cached object gets updated?
      Also can we use merge() method to update the cached object? If so why use evict() when we can use merge() ? Any replies would be truly appreciated

      Reply
      • If there is some direct DB update, session will not know it and no cache update will happen. Merge method will overwrite in the DB again. Based on whether you want to fetch latest data from database (refresh method) or overwrite database again with data stored in entity (merge method) – choose accordingly. Read more about Merging and Refreshing Entities.

        Reply
        • if you want to store only update fields you can provide “dynamic-update = true” in .hbm .xml file during configuration.

          So, if session load object update A field, it will only update a field.

          Reply
  2. I have few doubts regarding hibernate cache.

    1. Where the cached object is stored exactly? In which memory?

    2. Lets say I am loading an object first time using load method. It will be cached in session.
    Next time in the same session, I am trying to query same object with a hql query with some criteria. Will it be fetched from cache or database?

    Reply
  3. lokesh
    first
    user 1 execure query thru hibernate
    “select * from dept where id =40?”

    then again user 2 query thru hibernate

    “select * from dept where id =50?”

    how does hibenate figure out if it needs to go to cache or go to databsae?

    in this case obsivlosuly it needs to go to DB

    Reply
    • i mean
      user 1 execute query thru hibernate
      “select * from dept where id =40?”

      then again user 1 query thru hibernate

      “select * from dept where id =50?”

      Reply
  4. java.lang.ClassNotFoundException: org.hibernate.cache.EhCacheProvider
    at org.apache.catalina.loader.WebappClassLoader.loadClass(WebappClassLoader.java:1714)
    at org.apache.catalina.loader.WebappClassLoader.loadClass(WebappClassLoader.java:1559)
    at java.lang.Class.forName0(Native Method)

    Reply
  5. Very brief and clear explanination, thanks for the artical.

    To dig the issue (intoduced by Kartthik) further ,

    How Transactions are managed to avoide updates on stale objects in hibernate.

    Reply
  6. HI Lokesh,

    I am using Hibernate second level cache. But I have some points

    1. for some entities i required cache should be created at the server startup. How I can achieve it with hibernate and ehcache.
    2. In the session.load method we required Primary key for searching. But User never know the primary key they only know the Unique key like some code of the entity. then how I will get it from session.

    I hope you understand my problem.

    Thanks.

    Reply
  7. very instructive, thank you so much.
    Now I’m going to read your explanation about second level.
    I’m having many problems in an clustered production enviroment, many heavy queries.

    Reply
  8. Hi Lokesh, Can you please explain. How Session cache is working internally. I am asking about internal implementation of this cache mechanism.

    Reply
    • In case of single session, your application code always update this cache object so it is always updated. Hibernate takes care of synchronizing the changes with database at time of flushing the session.

      Now consider another example:

      machine 1: reads the data and returns it for editing somewhere else
      machine 2: also reads the data for modification
      machine 1: updates the data and commits.
      machine 2: tries to do an update and commit.

      What will happen when the second machine tries to commit its changes? Hibernate will see that the data has changed while machine 2 was working on the data. That is, machine 2’s update is on stale data. Hibernate can’t always merge the two changes (nor is that always desired behaviour), so it rejects the second update by throwing org.hibernate.StaleObjectStateException.

      The simplest solution, perhaps, is to add a version field using @Version on your data objects. Hibernate will automatically maintain the “version” of the data. Whenever an update takes place, the version will be changed automatically by Hibernate. Your job is the check that the version hasn’t changed between when you read the data and when you update the data. If they don’t match, you can do something to handle the problem (i.e. tell the user). There are some more sophisticated techniques for preventing concurrent updates, but this is the simplest.

      Reply
  9. Thanks for your brief explanation on this.However I had a doubt on how this can be useful in real time scenario where I have 2 controllers and in each controller , it is hitting the database through opening the new session object,getting the results and immediately closing the session since it not possible to open the session until second controller results. So in those scenarios where it using the First Level Cache not hitting the database for second controller.

    Reply
      • How to use First Level cache if we need to hit the database for same data from more than one place in application. for example in application I have 10 pages, 1st page, I hit the database and while retrieving the results from database by default it stored it in cache with in that session.

        Again, I need to use same data in 5th page, how can I retrieve data from cache instead of database since it will open another session

        Reply
      • In My application, I have 10 pages and in 1st page I hit the database and retrieve the results directly from database and this time it used first level cache by default.

        Again I need to use same data in 5th page, how can I use from cache instead of database.

        Reply
  10. Thank you very much. WIth your explanation I being able to resolve my issue, but, I used SessionFactory.openStatelessSession() to get a “fresh” entity.

    Reply
  11. Hi Lokesh, I m stuck in 1 issue,
    i m goin to delete multiple object in dao like ..

    sf.getCurrentSession.delete(object1);
    sf.getCurrentSession.delete(object2);
    sf.getCurrentSession.delete(object3);

    And getting following exception :
    org.hibernate.nonuniqueobjectexception a different object with the same identifier

    Pls help in resolving the issue.

    Reply
    • Can you please share the code is possible. That will be much better. Without code it’s very hard to guess.

      Basically, what hibernate is saying is that you have two objects which have the same identifier (same primary key) but they are not the same object.

      Reply
  12. Thank u so much. Its really very nice description along with the diagrams. Very nice to handle the interviews as well. Keep posting ..

    Reply
  13. Like to learn more on the updating/deleting entities combined with the first level cache behavior. When the cache get updated vs when the query executed on the database.

    Reply
  14. Nicely explained..Whatever topics you have covered those are very helpful during the interview..Keep posting…and thanks a lot for your effort…

    Reply
    • Example is good, but every where you copied same out put. If you use evict() 0r clear() it should display three select queries in output.

      Reply
