When working with Java, we often need to format and align the program output in columns and present data in tables. In this article, we’ll explore how to align text in columns and print it in tabular format using a custom TextTable class.
1. Align Text in Columns using Custom TextTable
Java does not provide any built-in class or library support for printing the text in tabular format. So we have created our own implementation named TextTable class.
1.1. Using TextTable
Before going into implementation, let’s start with how to use the TextTable class. In this example, we are creating a table of 3 columns ID, NAME and AGE. We can create as many columns as we need. While specifying the column names, we also assign the alignment directions for the column.
Next, we add the data as Object array. For each object, the toString() method will be called to get the String value. We can directly add the strings, numbers and other primitives as well.
Finally, we call the textTable.build() method and specify the line ending character that must be printed at the end of each line. In most cases, it will be the line separator.
TextTable textTable = new TextTable(
List.of(
new Column("ID", Alignment.RIGHT),
new Column("NAME", Alignment.LEFT),
new Column("AGE", Alignment.RIGHT)
)
);
textTable.add(1, "Lokesh", 40);
textTable.add(2, "Alexandru", 27);
textTable.add(3, "Mick", 38);
String formattedText = textTable.build(System.lineSeparator());
System.out.println(formattedText);
The above program will print the following output:
| ID | NAME | AGE |
| --:|:--------- | ---:|
| 1 | Lokesh | 40 |
| 2 | Alexandru | 27 |
| 3 | Mick | 38 |1.2. TextTable Class
Now we know how to use the TextTable class, let us see its implementation. The TextTable class provides methods for defining columns, adding rows, and building formatted tables.
- The Column class represents a table column with a header, width, and alignment.
- The Row class represents a table row with values.
- The Alignment Enum represents column alignments: LEFT, CENTER, RIGHT.
/**
* A utility class for creating and formatting text-based tables.
*/
public class TextTable {
/**
* Create a new column with the specified header.
*
* @param header The header of the column.
* @return A new column.
*/
public static Column column(String header) {
return new Column(header);
}
/**
* Create a new column with the specified header and alignment.
*
* @param header The header of the column.
* @param alignment The alignment of the column.
* @return A new column.
*/
public static Column column(String header, Alignment alignment) {
return new Column(header, alignment);
}
private final List<Column> columns;
private final List<Row> rows = new ArrayList<>();
/**
* Creates a TextTable with the specified columns.
*
* @param columns The columns to include in the table.
*/
public TextTable(List<Column> columns) {
this.columns = columns;
}
/**
* Build and return the table as a string with the given line ending.
*
* @param lineEnding The line ending to use.
* @return The formatted table as a string.
*/
public String build(String lineEnding) {
StringBuilder destination = new StringBuilder();
append(destination, lineEnding);
return destination.toString();
}
/**
* Append the table to the specified StringBuilder with the given line ending.
*
* @param destination The StringBuilder to append the table to.
* @param lineEnding The line ending to use.
*/
public void append(StringBuilder destination, String lineEnding) {
List<String> headers = columns.stream().map(c -> c.formatHeader(" "))
.collect(Collectors.toList());
printRow(destination, headers);
destination.append(lineEnding);
printSeparators(destination);
for (Row row : rows) {
destination.append(lineEnding);
printRow(destination, row.format(columns, " "));
}
}
private void printSeparators(StringBuilder destination) {
destination.append('|');
for (Column column : columns) {
destination.append(column.alignment != Alignment.RIGHT ? ':' : ' ');
destination.append(column.getSeparator('-'));
destination.append(column.alignment != Alignment.LEFT ? ':' : ' ');
destination.append('|');
}
}
private void printRow(StringBuilder destination, List<String> values) {
destination.append('|');
for (String value : values) {
destination.append(' ');
destination.append(value);
destination.append(' ');
destination.append('|');
}
}
/**
* Add a row to the table with the specified values. The number of values must match the number of columns.
*
* @param values The values to add to the row.
* @throws IllegalArgumentException if the number of values doesn't match the number of columns.
*/
public void add(@Nonnull Object... values) {
if (values.length != columns.size()) {
throw new IllegalArgumentException(
"Received the wrong amount of values for the table row, expected " + columns.size()
+ ", received " + values.length + ".");
}
Row row = new Row();
for (int i = 0; i < values.length; i++) {
String value = Objects.toString(values[i]);
row.values.add(value);
columns.get(i).fit(value);
}
rows.add(row);
}
/**
* Clear the table by resetting column widths and removing all rows.
*/
public void clear() {
for (Column column : columns) {
column.resetWidth();
}
rows.clear();
}
/**
* Get an unmodifiable list of columns in the table.
*
* @return An unmodifiable list of columns.
*/
public List<Column> getColumns() {
return Collections.unmodifiableList(columns);
}
/**
* A class representing a table column.
*/
public static class Column {
private String header;
private int width;
private Alignment alignment;
/**
* Create a new column with the specified header and a default left alignment.
*
* @param header The header of the column.
*/
public Column(String header) {
this(header, Alignment.LEFT);
}
/**
* Create a new column with the specified header and alignment.
*
* @param header The header of the column.
* @param alignment The alignment of the column.
*/
public Column(String header, Alignment alignment) {
this.header = header;
this.width = header.length();
this.alignment = alignment;
}
/**
* Format the header with the specified padding.
*
* @param padding The padding to apply.
* @return The formatted header.
*/
public String formatHeader(String padding) {
return format(header, padding);
}
/**
* Format a value with the specified padding.
*
* @param value The value to format.
* @param padding The padding to apply.
* @return The formatted value.
*/
public String format(String value, String padding) {
switch (alignment) {
case LEFT:
return StringUtils.rightPad(value, width, padding);
case RIGHT:
return StringUtils.leftPad(value, width, padding);
default:
int length = value.length();
int left = (width - length) / 2;
int leftWidth = left + length;
return StringUtils.rightPad(StringUtils.leftPad(value, leftWidth, padding), width, padding);
}
}
/**
* Get a separator of a specific character and width.
*
* @param character The character to use for the separator.
* @return The separator string.
*/
public String getSeparator(char character) {
return StringUtils.leftPad("", width, character);
}
/**
* Adjust the column width based on the specified value.
*
* @param value The value to adjust the column width.
*/
public void fit(String value) {
if (value.length() > width) {
width = value.length();
}
}
/**
* Reset the column width to its initial header length.
*/
public void resetWidth() {
this.width = header.length();
}
}
/**
* A class representing a table row.
*/
public static class Row {
private final ArrayList<String> values = new ArrayList<>();
/**
* Format the row values with the specified padding.
*
* @param columns The list of columns to align the values with.
* @param padding The padding to apply.
* @return A list of formatted values.
* @throws IllegalArgumentException if the number of columns doesn't match the number of values.
*/
public List<String> format(List<Column> columns, String padding) {
if (columns.size() != values.size()) {
throw new IllegalArgumentException(
"Received the wrong amount of columns for the table row, expected " + columns.size()
+ ", received " + values.size() + ".");
}
return Streams.zip(values.stream(), columns.stream(), (v, c) -> c.format(v, padding))
.collect(Collectors.toList());
}
}
/**
* An enum representing column alignments: LEFT, CENTER, RIGHT.
*/
public enum Alignment {
LEFT, CENTER, RIGHT
}
}2. Using String.format() for Simple Column Alignment

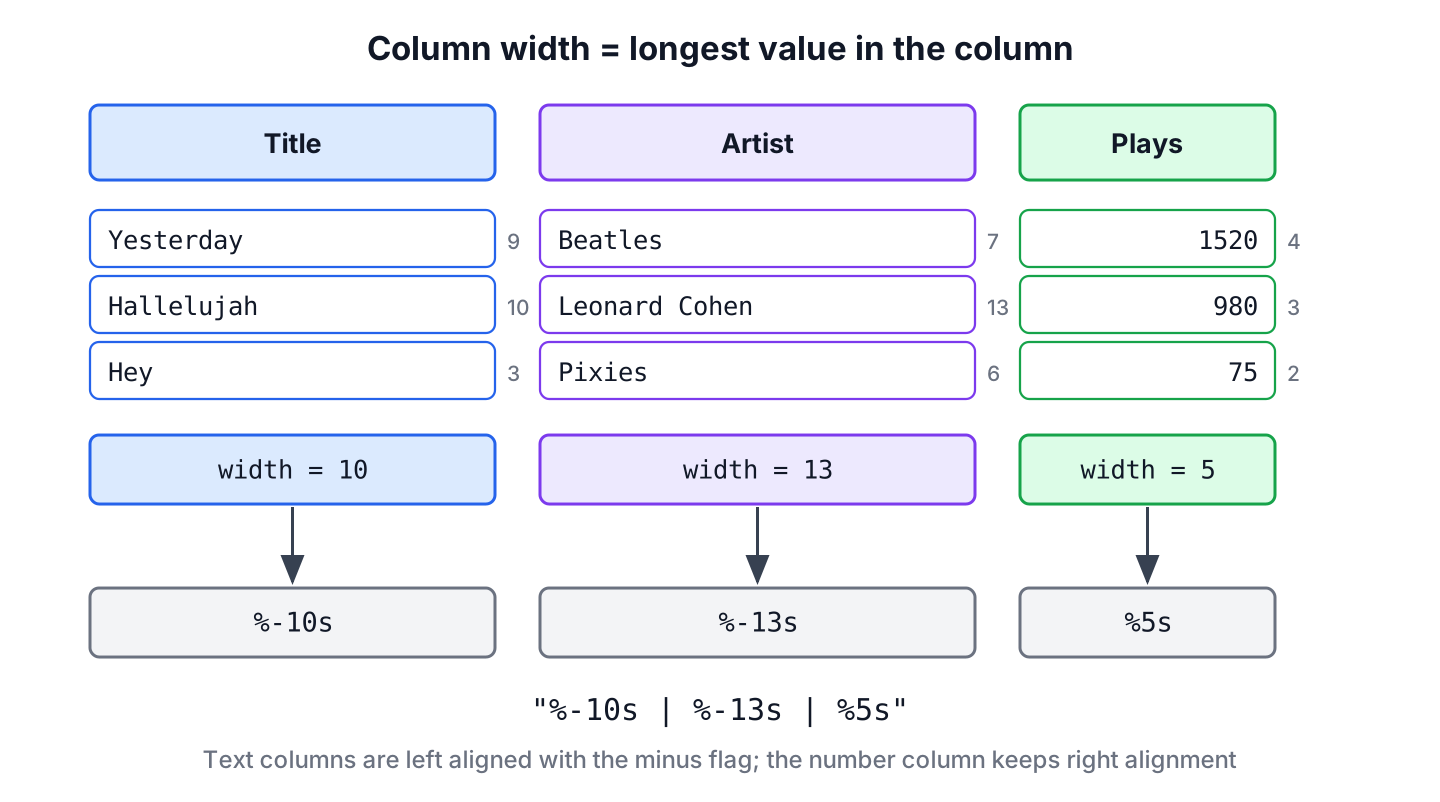

One of the most straightforward methods to align text in columns is by using the String.format() method which allows us to specify the width and alignment for each column within the format string.
The following example prints the same data (as in the previous example) using the String.format() method.
int[] ids = { 1, 2, 3};
String[] names = { "Lokesh", "Alexandru", "Mick" };
int[] scores = { 40, 27, 38};
// Define column widths
int idColumnWidth = 10;
int nameColumnWidth = 20;
int scoreColumnWidth = 10;
// Print table header
System.out.println(String.format("%-" + idColumnWidth + "s%-" + nameColumnWidth + "s%-"
+ scoreColumnWidth + "s", "ID", "NAME", "AGE"));
System.out.println("-".repeat(idColumnWidth + nameColumnWidth + scoreColumnWidth));
// Print data in aligned columns
for (int i = 0; i < names.length; i++) {
String formattedId = String.format("%-" + idColumnWidth + "d", ids[i]);
String formattedName = String.format("%-" + nameColumnWidth + "s", names[i]);
String formattedScore = String.format("%-" + scoreColumnWidth + "d", scores[i]);
System.out.println(formattedId + formattedName + formattedScore);
}
We can verify the text printed in tabular format in the console.
ID NAME AGE
----------------------------------------
1 Lokesh 40
2 Alexandru 27
3 Mick 38 3. Conclusion
When dealing with structured data representation, printing the program outputs in tabular format is a very common requirement. Using the above discussed TextTable class or String.format() methods, we can easily align the text in columns and print them in the console or any output file.
Happy Learning !!
