Decorator Design Pattern in Java

In software engineering, decorator design pattern is used to add additional features or behaviors to a particular instance of a class, while not modifying the other instances of same class. Decorators provide a flexible alternative to sub-classing for extending functionality. Please note that the description above implies that decorating an object changes its behavior but not its interface.

This pattern is very important to understand because once you know the techniques of decorating, you’ll be able to give your (or someone else’s) objects new responsibilities without making any code changes to the underlying classes. Interesting, isn’t it?? Also this pattern is really useful and commonly faced java interview question on design patterns.

In this post we will discuss on following points:

  • Design participants
  • Sample problem statement
  • Proposed solution using Decorator design pattern
  • Common interview questions
  • Some practical usages

Design participants

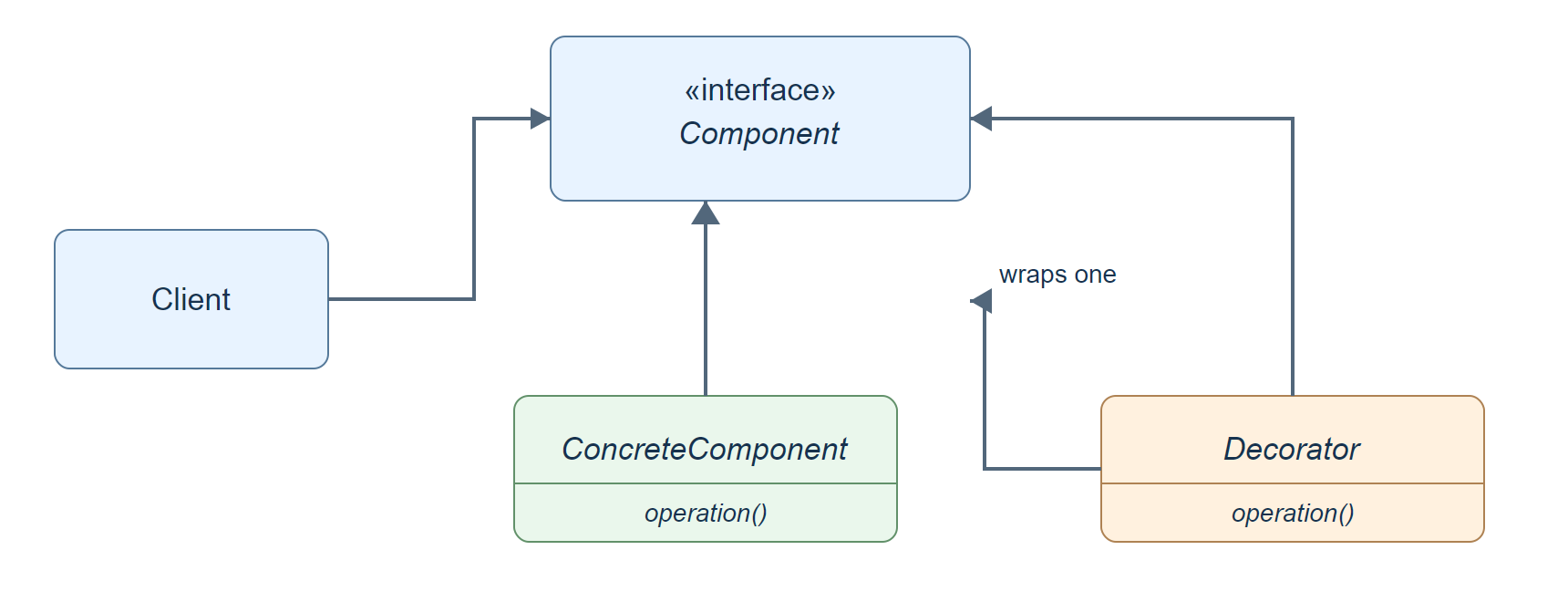

A typical diagram of decorator pattern looks like this.

decorator design pattern participants
Decorator design pattern participants

Following are the participants of the Decorator Design pattern:

  • Component – this is the wrapper which can have additional responsibilities associated with it at runtime.
  • Concrete component– is the original object to which the additional responsibilities are added in program.
  • Decorator-this is an abstract class which contains a reference to the component object and also implements the component interface.
  • Concrete decorator-they extend the decorator and builds additional functionality on top of the Component class.

If you closely read between the lines then you will understand that it works like this:

You have an instance, and you put another instance inside of it. They both support the same (or similar) interfaces. The one on the outside is a “decorator.” You use the one on the outside. It either masks, changes, or pass-troughs the methods of the instance inside of it.

I always prefer to learn things by example. So, let’s have one problem and let’s solve it.

Problem statement

Let’s have a common usecase where we have to show all user created reports to admin. Now, these reports can fall into these categories.

  • Client reports
  • Support reports

Both of these reports must have their first column as a link to original report and they should have different coloring. Possibly they should be opened in different popup window sizes. These are just few things, a lot can come in reality.

A possible approach can be to extend the Report object, and then have two separate classes ClientReport and SupportReport. In both methods, define private methods e.g. makeAnchorLink(), designPopup(), applyColor() and so on. Now call these methods in some getter method for first column data cell.

SubClassing

It will work if you stop here and do not modify the system anymore. But, let’s say after few days you are told to apply different background colors for both kinds of report. Now you have only one way that define a method colorBackground() in both classes and call appropriately. Problem becomes worse when you have more number of reports in your system in future.

Above solution is a clear violation of Open/Closed principle mentioned in SMART principles for class design.

Proposed solution using Decorator design pattern

Above problem is a perfect candidate for decorator pattern. Remember when we have an object that requires the extension but by design that is not suitable, go for decoration.

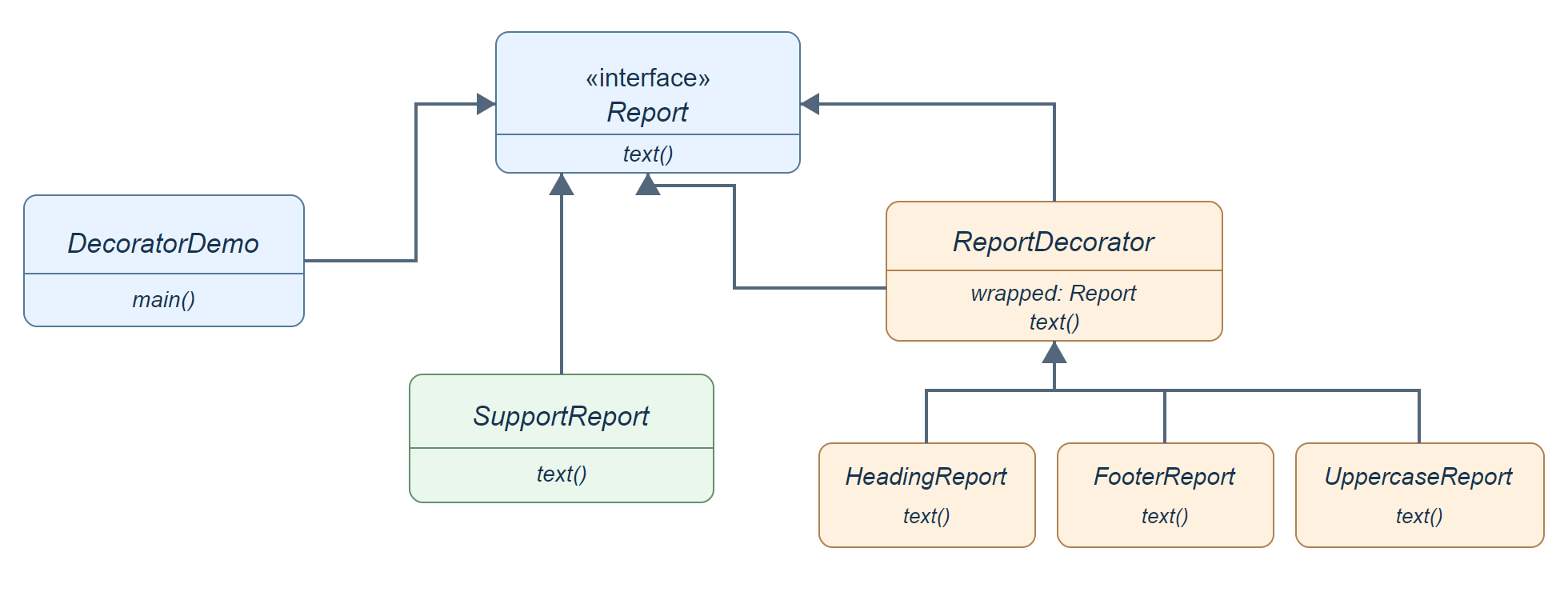

Above problem can be solved easily by following class diagram. Here I am using only for Support reports. A similar class hierarchy can be build for client reports also.

Decorator Pattern Solution
Decorator Pattern Solution

If we have implemented our solution like this, anytime in future we can add additional decoration without modifying existing class hierarchy. That is the ultimate goal we had in starting of this post, right?

Sourcecode Listings

Let’s see above class’s source code to know how actually it looks like.

Report.java

public interface Report {
	public Object[][] getReportData(final String reportId);
	public String getFirstColumnData();
}

SupportReport.java

public class SupportReport implements Report {

	@Override
	public Object[][] getReportData(String reportId) {
		return null;
	}

	@Override
	public String getFirstColumnData() {
		return "Support data";
	}

}

ColumDecorator.java

public abstract class ColumDecorator implements Report
{
	private Report decoratedReport;

	public ColumDecorator(Report report){
		this.decoratedReport = report;
	}

	public String getFirstColumnData() {
        return decoratedReport.getFirstColumnData();
    }

	@Override
	public Object[][] getReportData(String reportId) {
		return decoratedReport.getReportData(reportId);
	}
}

SupportLinkDecorator.java

public class SupportLinkDecorator extends ColumDecorator{

	public SupportLinkDecorator(Report report) {
		super(report);
	}

	public String getFirstColumnData() {
		return addMoreInfo (super.getFirstColumnData()) ;
	}

	private String addMoreInfo(String data){
		return data  + " - support link - ";
	}
}

SupportPopupDecorator.java

public class SupportPopupDecorator extends ColumDecorator{

	public SupportPopupDecorator(Report report) {
		super(report);
	}

	public String getFirstColumnData() {
		return addPopup (super.getFirstColumnData()) ;
	}

	private String addPopup(String data){
		return data  + " - support popup - ";
	}
}

DecoratorPatternTest.java

public class DecoratorPatternTest {
	public static void main(String[] args) {

		//ClientPopupDecorator popupDecoratored = new ClientPopupDecorator(new ClientLinkDecorator(new ClientReport()));
		//System.out.println(popupDecoratored.getFirstColumnData());

		SupportPopupDecorator supportPopupDecoratored = new SupportPopupDecorator(new SupportLinkDecorator(new SupportReport()));
		System.out.println(supportPopupDecoratored.getFirstColumnData());
	}
}

Output:

Support data - support link -  - support popup -

To download the complete source code and UML diagram, follow the download link in the end of post.

Interview questions on decorator pattern

A) How to decide when to use decorator pattern?

If we drill down more on the concept, we find that Decorator Design Pattern has several requirement indicators to suggest that it is potential solution e.g.

  • We have an object that requires the extension e. a window control that requires additional “optional” features like scrollbars, titlebar and statusbar.
  • Several objects that support the extension by “decoration”. Usually, those objects share a common interface, traits, or superclass, and sometimes, additional, intermediate super-classes .
  • The decorated object (class or prototype instantiation), and the decorator objects have one or several common features. In order to ensure that functionality, the decorated object & the decorators have a common interface, traits, or class inheritance.

B) Difference between decorator pattern and Adapter pattern

No. AdapterPattern is used to convert the interface of an object into something else. DecoratorPattern is used to extend the functionality of an object while maintaining its interface. Both of these are probably sometimes called Wrapper Pattern since both of them do “wrap” an object.

C) Difference between a DecoratorPattern and Subclassing

The difference between a DecoratorPattern and subclassing is that In subclassing you can decorate any class that implements an interface “with a single class”. Say I wanted to give myself a java.util.Map that printed a message whenever I added or removed a key. If I only ever actually used java.util.HashMap I could just create PrintingMap? as a subclass of HashMap and override put & remove. But if I want to create a printing version of TreeMap then I either create PrintingTreeMap? (which has almost identical code to PrintingMap?

Common usage of decorator pattern:

1) Java iO library classes e.g. BufferedInputStream bs = new BufferedInputStream(new FileInputStream(new File(“File1.txt”)));

2) In decorator column data in display-tag jsp library e.g.

<display:table name="reportsViewResultTable" class="demoClass" id="reportsQueryViewResultTable">
	<display:column title="Report Id" sortable="true" property="reportDisplayId" decorator="com.comp.FirstColumnDataDecorator"></display:column>
</display:table>

3) Decorators are used in sitemesh, to give a consistent UI experience.

Happy Learning !!
