Spring security login form example

By Lokesh Gupta | Filed Under: Spring Security

Learn to add Spring security login form to any spring web applications using detailed information discussed in spring security tutorial.

Table of Contents

1. Background information
2. Spring security maven dependencies
3. Configure DelegatingFilterProxy in web.xml
4. Add security configuration in application-security.xml
5. Update the controller
6. Add related JSP views
7. Test the application

Read More : Spring security 5 login form example [Updated for Spring 5]

1. Background information

We learned to integrate between Spring 3 and hibernate in linked post. That application was simple web application which presents a view where user can add/edit employees.

Lets secure that application. The scope of this tutorial is to:

Only authorized user should be able to access edit employee screen.
Unauthorized users should be presented with login screen.
Successful credentials should forward to edit employee screen.
Unsuccessful credentials should forward to access denied screen.
There should be a link for logout of the application.

2. Spring security maven dependencies

Lets start with very first step i.e. update the project dependencies. It will add following four sub-modules in demo for following reasons:

spring-security-core : It contains core authentication and access-control classes and interfaces.
spring-security-web : It contains filters and related web-security infrastructure code. It also enable URL based security which we are going to use in this demo.
spring-security-config : It contains the security namespace parsing code. You need it if you are using the Spring Security XML file for configuration.
spring-security-taglibs : It provides basic support for accessing security information and applying security constraints in JSPs.

<properties>
    <org.springframework.version>3.0.5.RELEASE</org.springframework.version>
</properties>

<!-- Spring Security -->
<dependency>
	<groupid>org.springframework.security</groupid>
	<artifactid>spring-security-core</artifactid>
	<version>${org.springframework.version}</version>
	<type>jar</type>
	<scope>compile</scope>
</dependency>
<dependency>
	<groupid>org.springframework.security</groupid>
	<artifactid>spring-security-web</artifactid>
	<version>${org.springframework.version}</version>
	<type>jar</type>
	<scope>compile</scope>
</dependency>
<dependency>
	<groupid>org.springframework.security</groupid>
	<artifactid>spring-security-config</artifactid>
	<version>${org.springframework.version}</version>
	<type>jar</type>
	<scope>compile</scope>
</dependency>
<dependency>
	<groupid>org.springframework.security</groupid>
	<artifactid>spring-security-taglibs</artifactid>
	<version>${org.springframework.version}</version>
	<type>jar</type>
	<scope>compile</scope>
</dependency>

Now use “mvn compile” command to update the dependencies in project.

3. Configure DelegatingFilterProxy in web.xml

Spring Security’s web infrastructure is based entirely on standard servlet filters. These filters are defined in web.xml file or they will be ignored by the servlet container.

In Spring Security, the filter classes are also Spring beans defined in the application context and thus able to take advantage of Spring’s rich dependency-injection facilities and lifecycle interfaces. Spring’s DelegatingFilterProxy provides the link between web.xml and the application context.

<filter>
	<filter-name>springSecurityFilterChain</filter-name>
	<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>


<filter-mapping>
	<filter-name>springSecurityFilterChain</filter-name>
	<url-pattern>/*</url-pattern>
</filter-mapping>

If you are not using any explicit filter definitions and wants spring to configure basic infrastructure for you, then use filter name as ‘springSecurityFilterChain‘ as in above example. Note that you should not use this bean name yourself. Once you’ve added this to your web.xml, you’re ready to start editing your spring security configuration file. Web security services are configured using the element.

Also do not forget to put security configuration file in context config location setting.

<context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>
    	/WEB-INF/employee-servlet.xml
    	/WEB-INF/application-security.xml
    </param-value>
</context-param>

A complete web.xml file will look like this:

<?xml version="1.0" encoding="UTF-8"?>

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    id="WebApp_ID" version="2.5">

  <display-name>Archetype Created Web Application</display-name>
  	<welcome-file-list>
  		<welcome-file>/WEB-INF/index.jsp</welcome-file>
  	</welcome-file-list>

  	<filter>
		<filter-name>springSecurityFilterChain</filter-name>
		<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
	</filter>

	<filter-mapping>
		<filter-name>springSecurityFilterChain</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
    <servlet>
        <servlet-name>employee</servlet-name>
        <servlet-class>
            org.springframework.web.servlet.DispatcherServlet
        </servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>employee</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <context-param>
	    <param-name>contextConfigLocation</param-name>
	    <param-value>
	    	/WEB-INF/employee-servlet.xml
	    	/WEB-INF/application-security.xml
	    </param-value>
	</context-param>
    <listener>
	    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>
</web-app>

4. Configure login logout security

As we learned in last section that using filter name as springSecurityFilterChain can help you configure the basic infrastructure using element. Lets see how it is configured first? I have written a basic configuration for this demo:

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/security
	http://www.springframework.org/schema/security/spring-security-3.0.3.xsd">

	<http auto-config="true"  use-expressions="true">
		<intercept-url pattern="/login" access="permitAll" />
		<intercept-url pattern="/logout" access="permitAll" />
		<intercept-url pattern="/accessdenied" access="permitAll" />
		<intercept-url pattern="/**" access="hasRole('ROLE_USER')" />
		<form-login login-page="/login" default-target-url="/list" authentication-failure-url="/accessdenied" />
		<logout logout-success-url="/logout" />
	</http>

	<authentication-manager alias="authenticationManager">
		<authentication-provider>
			<user-service>
				<user name="lokesh" password="password" authorities="ROLE_USER" />
			</user-service>
		</authentication-provider>
	</authentication-manager>

</beans:beans>

Lets see what this configuration actually mean.

http : Include configuration related url level security. This element is the parent for all web-related namespace functionality.

auto-config : Includes some basic services. It is shorthand for –

<http>
    <form-login />
    <http-basic />
    <logout />
</http>

use-expressions : It is here to use expressions to secure individual URLs. These expressions can be e.g. hasRole([role]), hasAnyRole([role1,role2]), permitAll, denyAll etc.
intercept-url : This will match the requested url pattern from request and will decide what action to take based on access value.
form-login: This will come into picture when user will try to access any secured URL. A login page mapped to “login-page” attribute will be served for authentication check. It is spring security login-processing-url.
If not provided, spring will provide an inbuilt login page to user. It also contains attribute for default target if login success, or login failure due to invalid user/password match.
logout: This will help to find the next view if logout is called in application.

I am using XML based user service i.e. I will not go to database for password validation rather I have stored username/password combination in configuration file itself. To use this king of setup, authentication-manager is setup with inline in-built user details service. In more real time applications, this is going to be some user service fetching data from remote database.

5. Spring controller

I will reuse the controller and will add additional mappings and handler methods in controller. These additional URLs are /login, /logout and /accessdenied. The updated controller having all method handlers looks like this:

package com.howtodoinjava.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

import com.howtodoinjava.entity.EmployeeEntity;
import com.howtodoinjava.service.EmployeeManager;

@Controller
public class EditEmployeeController {

	@Autowired
	private EmployeeManager employeeManager;

	public void setEmployeeManager(EmployeeManager employeeManager) {
		this.employeeManager = employeeManager;
	}

	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public String login(ModelMap model) {
		return "login";
	}

	@RequestMapping(value = "/accessdenied", method = RequestMethod.GET)
	public String loginerror(ModelMap model) {
		model.addAttribute("error", "true");
		return "denied";
	}

	@RequestMapping(value = "/logout", method = RequestMethod.GET)
	public String logout(ModelMap model) {
		return "logout";
	}

	@RequestMapping(value = "/", method = RequestMethod.GET)
	public String defaultPage(ModelMap map) {
		return "redirect:/list";
	}

	@RequestMapping(value = "/list", method = RequestMethod.GET)
	public String listEmployees(ModelMap map) {

		map.addAttribute("employee", new EmployeeEntity());
		map.addAttribute("employeeList", employeeManager.getAllEmployees());

		return "editEmployeeList";
	}

	@RequestMapping(value = "/add", method = RequestMethod.POST)
	public String addEmployee(
			@ModelAttribute(value = "employee") EmployeeEntity employee,
			BindingResult result) {
		employeeManager.addEmployee(employee);
		return "redirect:/list";
	}

	@RequestMapping("/delete/{employeeId}")
	public String deleteEmplyee(@PathVariable("employeeId") Integer employeeId) {
		employeeManager.deleteEmployee(employeeId);
		return "redirect:/list";
	}
}

6. Spring views

We have now configured our application with security configuration and controller handlers. Its time to write the views which are essentially JSP files. Most important addition in jsp files is login.jsp file.

This file have the form which contains text boxes for username and password field. Lets see how it is written:

6.1. login.jsp

<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://www.springframework.org/tags/form" prefix="form" %>
<%@ taglib uri="http://www.springframework.org/tags" prefix="spring" %>

<html>
	<body>
		<h1 id="banner">Login to Security Demo</h1>
		<form name="f" action="<c:url value='j_spring_security_check'/>"
					method="POST">
			<table>
				<tr>
					<td>Username:</td>
					<td><input type='text' name='j_username' /></td>
				</tr>
				<tr>
					<td>Password:</td>
					<td><input type='password' name='j_password'></td>
				</tr>
				<tr>
					<td colspan="2">&nbsp;</td>
				</tr>
				<tr>
					<td colspan='2'><input name="submit" type="submit">&nbsp;<input name="reset" type="reset"></td>
				</tr>
			</table>
		</form>
	</body>
</html>

By default, spring auto generates and configures a UsernamePasswordAuthenticationFilter bean. This filter, by default, responds to the URL /j_spring_security_check when processing a login POST from your web-form. For username field it uses ‘j_username‘ and for password field it uses ‘j_password‘.

On submitting this form, UsernamePasswordAuthenticationFilter will match the username and password as configured in authentication-provider settings in application-security.xml.

6.2. logout.jsp

< % session.invalidate(); %>
You are now logged out!!

<a href="//howtodoinjava.com/spring/spring-security/login-form-based-spring-3-security-example/">go back</a>

This view simply invalidate the session and provide a link to go back to login page.

6.3. denied.jsp

This jsp file will come in user screen when user will try to authenticate with invalid user name and password combinations. It will show the corresponding message as configured in message.properties in your classpath.

<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<html>
	<body>

		<h1 id="banner">Unauthorized Access !!</h1>

		<hr />

		<c:if test="${not empty error}">
			<div style="color:red">
				Your fake login attempt was bursted, dare again !!<br />
				Caused : ${sessionScope["SPRING_SECURITY_LAST_EXCEPTION"].message}
			</div>
		</c:if>

		<p class="message">Access denied!</p>
		<a href="//howtodoinjava.com/spring/spring-security/login-form-based-spring-3-security-example/">Go back to login page</a>
	</body>
</html>

7. Spring security login form demo

Its time to test the application. Simply deploy the application in any server e.g. in my case i am using Tomcat 7.0. Now, do following steps:

7.1. Type the URL in browser “http://localhost:8080/Spring3HibernateIntegration”

It will bring the login screen as besides /login, /logoutand /accessdenied all other URLs are protected URLs.

default-login-screen-spring-security — Default login screen

7.2. Try to authenticate with username ‘demo’ and password ‘1234’

unauthorized-access-spring-security — Unauthorized access for invalid username and password

It will given access denied error because username and password is invalid.

7.3. Try to authenticate with username ‘lokesh’ and password ‘password’

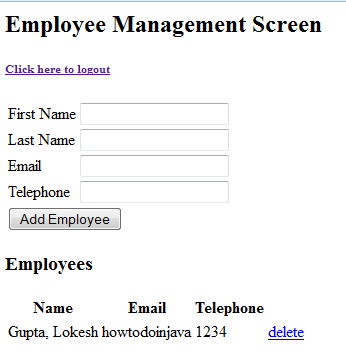

It will given employee management screen because username and password is correct.

7.4. Click on logout link

Logout message

User will be logged out and login screen will appear.

I hope this spring mvc login example has been able to put some light on basic spring security mechanism using xml configurations. If you any question on this Spring security login form example, drop me a comment.

Download sourcecode

Happy Learning !!

Twitter Facebook Linkedin Reddit Pocket

About Lokesh Gupta

A family guy with fun loving nature. Love computers, programming and solving everyday problems. Find me on Facebook and Twitter.

73
Leave a Reply

newest oldest most voted

omarghazala

Thanks for this awesome step by step I was wondering how to get past in vaild CSRF token
Invalid CSRF Token ‘null’ was found on the request parameter ‘_csrf’ or header ‘X-CSRF-TOKEN’.

Can you suggest me how to connect database table for login access with username & password


<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/security
	http://www.springframework.org/schema/security/spring-security-3.0.3.xsd">

	<http auto-config="true"  use-expressions="true">
		<intercept-url pattern="/login" access="permitAll" />
		<intercept-url pattern="/logout" access="permitAll" />
		<intercept-url pattern="/accessdenied" access="permitAll" />
		<intercept-url pattern="/**" access="hasRole('ROLE_USER')" />
		<form-login login-page="/login" default-target-url="/list" authentication-failure-url="/accessdenied" />
		<logout logout-success-url="/logout" />
	</http>

	<authentication-manager alias="authenticationManager">
		<authentication-provider>
			<user-service>
				<user name="lokesh" password="password" authorities="ROLE_USER" />
			</user-service>
		</authentication-provider>
	</authentication-manager>

</beans:beans>

1. Background information

2. Spring security maven dependencies

3. Configure DelegatingFilterProxy in web.xml

4. Configure login logout security

5. Spring controller

6. Spring views

6.1. login.jsp

6.2. logout.jsp

6.3. denied.jsp

7. Spring security login form demo

About Lokesh Gupta

73 Leave a Reply

Meta Links

Recommended Reading

73
Leave a Reply
