JUnit XML Report: Surefire and Open Test Reporting Formats

A JUnit XML report is a machine-readable file with the result of every test of a run, and JUnit 6 builds produce two formats of it, namely the classic JUnit XML that Maven Surefire and Gradle write per test class, and the newer Open Test Reporting XML that JUnit itself writes per run. CI servers such as Jenkins and GitLab read the XML to show test trends, failures and flaky tests.

We care about the XML whenever a pipeline must show test results, when a quality tool imports them, or when we write a script that reacts to failed tests. People read the JUnit HTML report, while machines read the XML.

The following example is the XML that Maven Surefire 3.6.0 writes for a test class with JUnit 6.1.3, with one disabled test and one test that prints a line.

<testsuite xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://maven.apache.org/surefire/maven-surefire-plugin/xsd/surefire-test-report.xsd" version="3.0.2" name="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.148" tests="4" errors="0" skipped="1" failures="0" flakes="0">
  <testcase name="Valid test card number passes the Luhn check" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.045"/>
  <testcase name="maskKeepsLastFourDigits" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.027">
    <system-out><![CDATA[Masked card: **** 1111
]]></system-out>
  </testcase>
  <testcase name="rejectsExpiredNetworkPrefix" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.0">
    <skipped message="Waiting for the new card network rules"/>
  </testcase>

Notice that the testsuite element holds the counts, and each testcase holds its own outcome as a child element. Next, we compare the two formats, read both files from a real run with a failure, and configure them in Maven and Gradle. The last part shows how CI servers pick up the files.

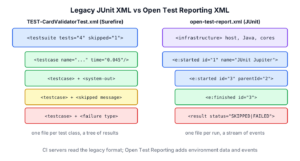

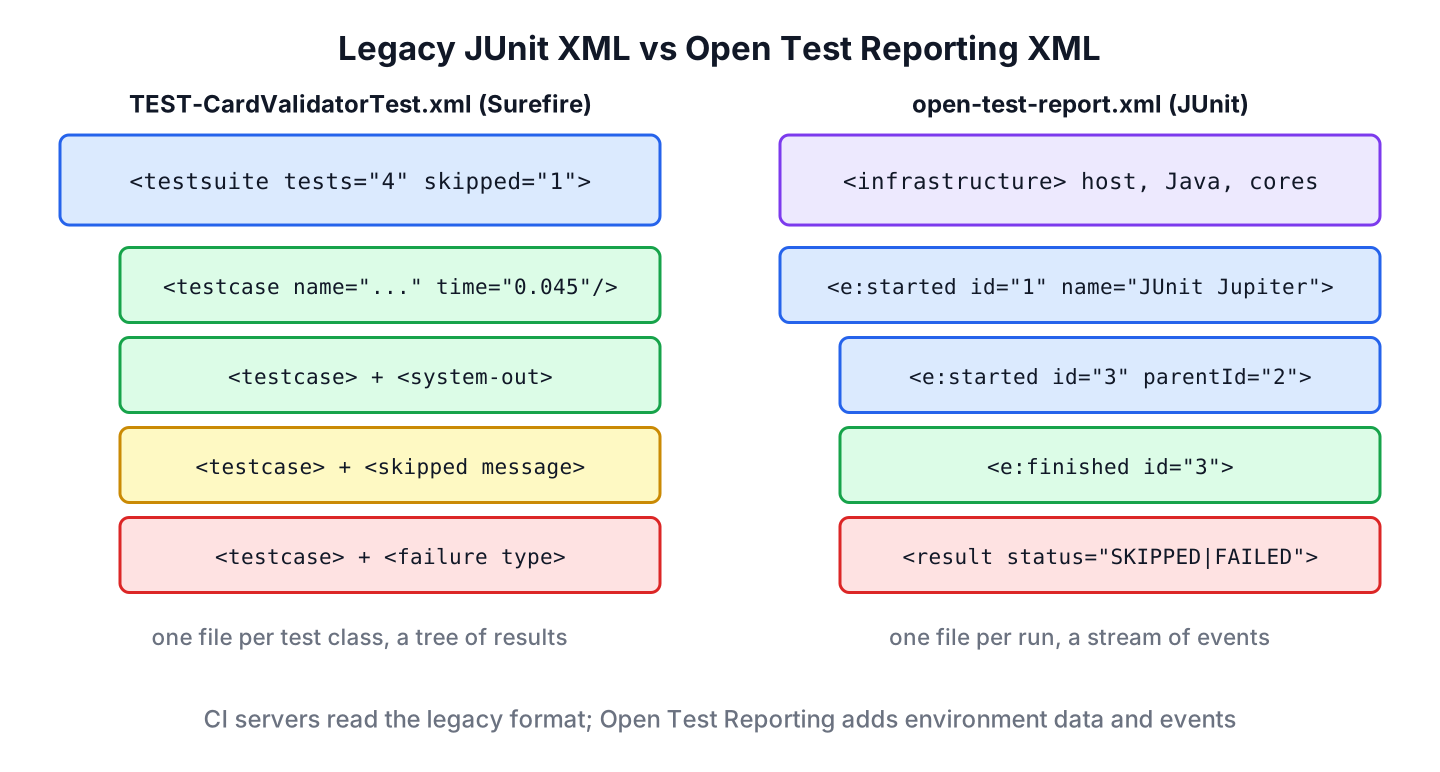

1. Two XML Formats for JUnit Results

The classic format comes from the Ant JUnit task of the JUnit 4 days. There is no official specification for it, but every CI server understands it, and both Maven and Gradle write it by default. Open Test Reporting is a newer format from the JUnit team. It records each test as a stream of events and adds data about the environment.

	Legacy JUnit XML	Open Test Reporting XML
Written by	Maven Surefire / Failsafe, Gradle, Console Launcher	JUnit’s junit-platform-reporting listener
Enabled	By default	Only with junit.platform.reporting.open.xml.enabled=true
Files	One TEST-<class>.xml per test class	One open-test-report.xml per run
Structure	testsuite with testcase children	e:started and e:finished events with ids
Extra data	System properties, captured output	Host, user, CPU cores, Java version, heap size, optional Git info
Read by	Jenkins, GitLab, GitHub Actions plugins, SonarQube and most CI tools	Open Test Reporting CLI and tools that support the format

For a CI dashboard, the legacy format is the safe choice today, because every server reads it. The Open Test Reporting file is useful when we want the environment data or one file for the whole run, and it does not replace the legacy files.

2. The Legacy XML Report in Maven

The example project tests a CardValidator class that checks credit card numbers with the Luhn algorithm and masks them for receipts. After mvn test, Surefire leaves two files per test class in target/surefire-reports, a plain text summary and the XML report.

target/surefire-reports/TEST-com.howtodoinjava.junit.payments.CardValidatorTest.xml
target/surefire-reports/com.howtodoinjava.junit.payments.CardValidatorTest.txt

Each element of the XML has a fixed meaning, which the Surefire XML schema describes. CI servers read only a few of these elements and attributes.

Element or attribute	Meaning
testsuite tests, failures, errors, skipped	Counts for the class; failures are failed assertions, errors are unexpected exceptions
testsuite/properties	All system properties of the test JVM, 60 entries in our run, such as java.version and os.name
testcase name, classname, time	One test method (or one invocation of a parameterized test) and its duration in seconds
skipped with message	A disabled test or a failed assumption, with the reason
failure with message and type	A failed assertion, with the exception class and the stack trace as text
system-out, system-err	Output the test printed while it ran

The properties list holds the whole JVM environment. A pipeline that publishes the XML outside the company should keep that in mind, because it can contain paths and user names.

    <property name="os.name" value="Linux"/>
    <property name="java.version" value="25.0.4.1"/>

2.1. A Failed Test in the XML

The class CardMaskingDemoTest expects a wrong masked number, so the pom.xml leaves it out of the default test run. We run it alone with mvn test -Dtest=CardMaskingDemoTest, and Surefire writes a failure element with the assertion message and the stack trace.

@Test
void maskShowsLastFourDigits() {
  assertEquals("**** 1112", new CardValidator().mask("4111 1111 1111 1111"));
}

<testsuite xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://maven.apache.org/surefire/maven-surefire-plugin/xsd/surefire-test-report.xsd" version="3.0.2" name="com.howtodoinjava.junit.demo.CardMaskingDemoTest" time="0.209" tests="1" errors="0" skipped="0" failures="1" flakes="0">
  <testcase name="maskShowsLastFourDigits" classname="com.howtodoinjava.junit.demo.CardMaskingDemoTest" time="0.14">
    <failure message="expected: &lt;**** 1112&gt; but was: &lt;**** 1111&gt;" type="org.opentest4j.AssertionFailedError"><![CDATA[org.opentest4j.AssertionFailedError: expected: <**** 1112> but was: <**** 1111>
	at org.junit.jupiter.api.Assertions.assertEquals(Assertions.java:1199)
	at com.howtodoinjava.junit.demo.CardMaskingDemoTest.maskShowsLastFourDigits(CardMaskingDemoTest.java:13)
]]></failure>
  </testcase>

CI servers show the message attribute in the test list and the CDATA text in the detail view. The type attribute separates assertion failures (AssertionFailedError) from real errors, which Surefire writes as an error element instead.

2.2. Display Names in the Surefire XML

By default, Surefire writes the method name into the name attribute and ignores @DisplayName. A test report of the order module shows plain method names.

  <testcase name="subtotalAddsPrices" classname="com.howtodoinjava.junit.orders.OrderTotalsTest" time="0.033"/>

Since Surefire 3.0.0-M4, the statelessTestsetReporter configuration switches the XML to the display names. Our example sets only the option for method names, so the class names stay fully qualified, which keeps the links in CI servers working.

<statelessTestsetReporter implementation="org.apache.maven.plugin.surefire.extensions.junit5.JUnit5Xml30StatelessReporter">
  <usePhrasedTestCaseMethodName>true</usePhrasedTestCaseMethodName>
</statelessTestsetReporter>

With this element in the Surefire configuration, the test with a display name shows the sentence, as in the XML at the top of this article. Methods without @DisplayName keep their names.

3. The Legacy XML Report in Gradle

Gradle writes the same format to build/test-results/test, one file per class, without any configuration. Gradle uses the display names by default and keeps the parentheses of method names, so the same test class looks slightly different.

<testsuite name="com.howtodoinjava.junit.payments.CardValidatorTest" tests="4" skipped="1" failures="0" errors="0" timestamp="2026-10-11T15:17:58.474Z" hostname="vm" time="0.16">
  <testcase name="Valid test card number passes the Luhn check" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.047"/>
  <testcase name="maskKeepsLastFourDigits()" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.028"/>
  <testcase name="rejectsExpiredNetworkPrefix()" classname="com.howtodoinjava.junit.payments.CardValidatorTest" time="0.001">
    <skipped/>

Notice that Gradle adds timestamp and hostname to the testsuite element and writes the skipped element without the reason. Parameterized tests get one testcase per invocation with names such as [1] “45”, “false”, “4”, as the JUnit Gradle dependency build shows.

4. Open Test Reporting XML From JUnit

The second format comes from JUnit, not from the build tool. The listener OpenTestReportGeneratingListener in junit-platform-reporting writes it when the configuration parameter junit.platform.reporting.open.xml.enabled is true. The parameter is false by default, so adding the dependency alone writes nothing.

In Maven, we add the dependency without a version, because the junit-bom sets it, and we pass the parameters through Surefire’s configurationParameters property.

<dependency>
  <groupId>org.junit.platform</groupId>
  <artifactId>junit-platform-reporting</artifactId>
  <scope>test</scope>
</dependency>

<properties>
  <configurationParameters>
    junit.platform.reporting.open.xml.enabled = true
    junit.platform.reporting.output.dir = target/open-test-reports
  </configurationParameters>
</properties>

The run writes one file for all test classes. It starts with the environment and continues with events that refer to each other by id and parentId.

  <infrastructure>
    <operatingSystem>Linux</operatingSystem>
    <cpuCores>2</cpuCores>
    <java:javaVersion>25.0.4.1</java:javaVersion>
    <java:fileEncoding>UTF-8</java:fileEncoding>
  </infrastructure>
  <e:started id="6" name="Mistyped digit fails the Luhn check" parentId="2" time="2026-10-11T15:00:09.623280353Z">
    <metadata>
      <junit:uniqueId>[engine:junit-jupiter]/[class:com.howtodoinjava.junit.payments.CardValidatorTest]/[method:mistypedNumber()]</junit:uniqueId>
      <junit:legacyReportingName>mistypedNumber()</junit:legacyReportingName>
      <junit:type>TEST</junit:type>
    </metadata>
  </e:started>
  <e:finished id="6" time="2026-10-11T15:00:09.629218695Z">
    <result status="SUCCESSFUL"/>
  </e:finished>

Each test has a started and a finished event, and the result sits in the finished event. The uniqueId is the same id that JUnit uses to select a test, and the display name is the name attribute. A disabled test ends with SKIPPED and its reason, and a failed test carries the exception.

    <result status="FAILED">
      <java:throwable assertionError="true" type="org.opentest4j.AssertionFailedError"><![CDATA[org.opentest4j.AssertionFailedError: expected: <**** 1112> but was: <**** 1111>

Gradle passes the same parameters as JVM arguments of the test task. We pass them through a CommandLineArgumentProvider that points to Gradle’s own output location, which keeps the test task relocatable across machines when we use the Gradle build cache.

dependencies {
    testRuntimeOnly("org.junit.platform:junit-platform-reporting")
}

tasks.test {
    useJUnitPlatform()
    val outputDir = reports.junitXml.outputLocation
    jvmArgumentProviders += CommandLineArgumentProvider {
        listOf(
            "-Djunit.platform.reporting.open.xml.enabled=true",
            "-Djunit.platform.reporting.output.dir=" + outputDir.get().asFile.absolutePath
        )
    }
}

build/test-results/test/TEST-com.howtodoinjava.junit.payments.CardValidatorTest.xml
build/test-results/test/open-test-report.xml

The Open Test Reporting file lands next to the legacy files that Gradle writes anyway. A CI step that collects build/test-results/test/*.xml picks up both, so we exclude open-test-report.xml from steps that expect the legacy format.

4.1. Open Test Reporting Options

A few more configuration parameters control the file. All of them go into the same configurationParameters block or Gradle argument list.

Parameter	Default	Effect
junit.platform.reporting.open.xml.enabled	false	Writes open-test-report.xml
junit.platform.reporting.output.dir	target (Maven), build (Gradle)	Output folder; the placeholder {uniqueNumber} creates a new folder per run
junit.platform.reporting.open.xml.git.enabled	false	Adds information about the Git repository of the project, such as the commit
junit.platform.reporting.open.xml.socket	not set	Since JUnit 6.1, sends the events to a port on 127.0.0.1 instead of a file

The file name is fixed, so a second run overwrites the first one. When we run several Maven invocations in one CI job, for example one per test group, an output folder such as target/open-test-reports/run-{uniqueNumber} keeps all files.

5. Publishing the XML Report in CI

CI servers read the legacy files through a file pattern, and each server has one setting for it. The patterns below match the default locations of Maven and Gradle.

CI server	Setting	Maven pattern
Jenkins	junit step of the JUnit plugin	target/surefire-reports/*.xml
GitLab CI	artifacts:reports:junit	target/surefire-reports/TEST-*.xml
GitHub Actions	A test reporter action from the Marketplace	target/surefire-reports/TEST-*.xml
Any server, Failsafe tests	Same setting, second pattern	target/failsafe-reports/TEST-*.xml

The GitLab unit test reports feature accepts file patterns but not bare directories, and it limits each file to 30 MB. A test report never decides whether the job passes, so the job still has to run mvn verify or ./gradlew check and fail on test failures.

6. JUnit XML Report FAQs

Pipeline setups raise questions about the schema of the legacy format and about turning the XML into a page people can read.

6.1. Is There an Official JUnit XML Schema?

No. JUnit never published a schema for the legacy format, which comes from the Ant JUnit task. Maven Surefire publishes its own XSD for the files it writes, and CI tools accept the common subset of testsuite, testcase, failure, error and skipped.

6.2. Does JUnit 6 Write XML Reports Without Maven or Gradle?

Yes. The Console Launcher writes legacy XML files with its –reports-dir option through LegacyXmlReportGeneratingListener, and any launcher writes the Open Test Reporting file when junit-platform-reporting is on the classpath and the parameter is enabled. The JUnit Launcher API article shows how to start tests from code.

6.3. Why Are Display Names Missing in the Surefire XML?

Surefire writes method names by default. The statelessTestsetReporter setting from section 2.2 switches to display names. Gradle uses display names without extra configuration.

6.4. What Is the Difference Between failures and errors in the XML?

A failure is a failed assertion, for example an AssertionFailedError from assertEquals(). An error is any other exception that escapes the test, such as a NullPointerException. Both make the build fail.

6.5. Can I Turn the XML Report Into HTML?

Yes. The Maven Surefire Report plugin renders the legacy files, Gradle writes its own HTML report, and the Open Test Reporting CLI has an html-report command for the event format. The HTML report article linked in the introduction covers all three.

7. Conclusion

JUnit results reach a CI server as XML. Maven Surefire and Gradle write the legacy JUnit XML per test class by default, with a testsuite element for the counts and a testcase element per test, and every CI server reads it. Surefire needs one setting to show display names, and Gradle shows them already.

The Open Test Reporting XML from junit-platform-reporting is JUnit’s own format, enabled with one configuration parameter. It records the run as events and adds the environment, which helps when we compare runs on different machines. The JUnit tutorial lists the other build and reporting topics.

8. References

• JUnit 6.1.3 User Guide – JUnit Platform Reporting
• JUnit 6.1.3 User Guide – Build Support
• Maven Surefire – Using JUnit Platform
• Surefire test report XSD
• Open Test Reporting on GitHub
• Gradle 9.8.1 User Manual – Testing in Java
• GitLab Unit Test Reports
